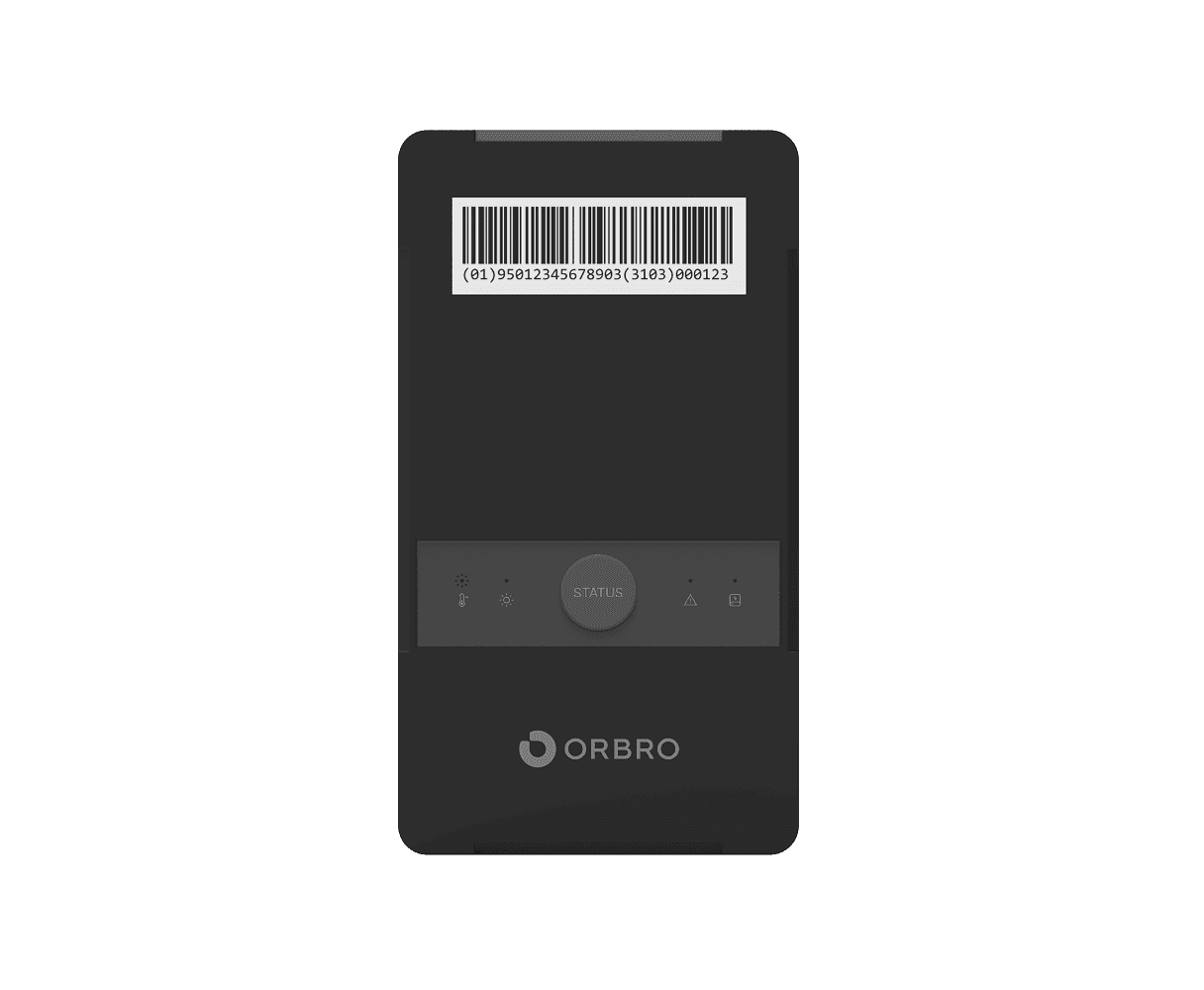

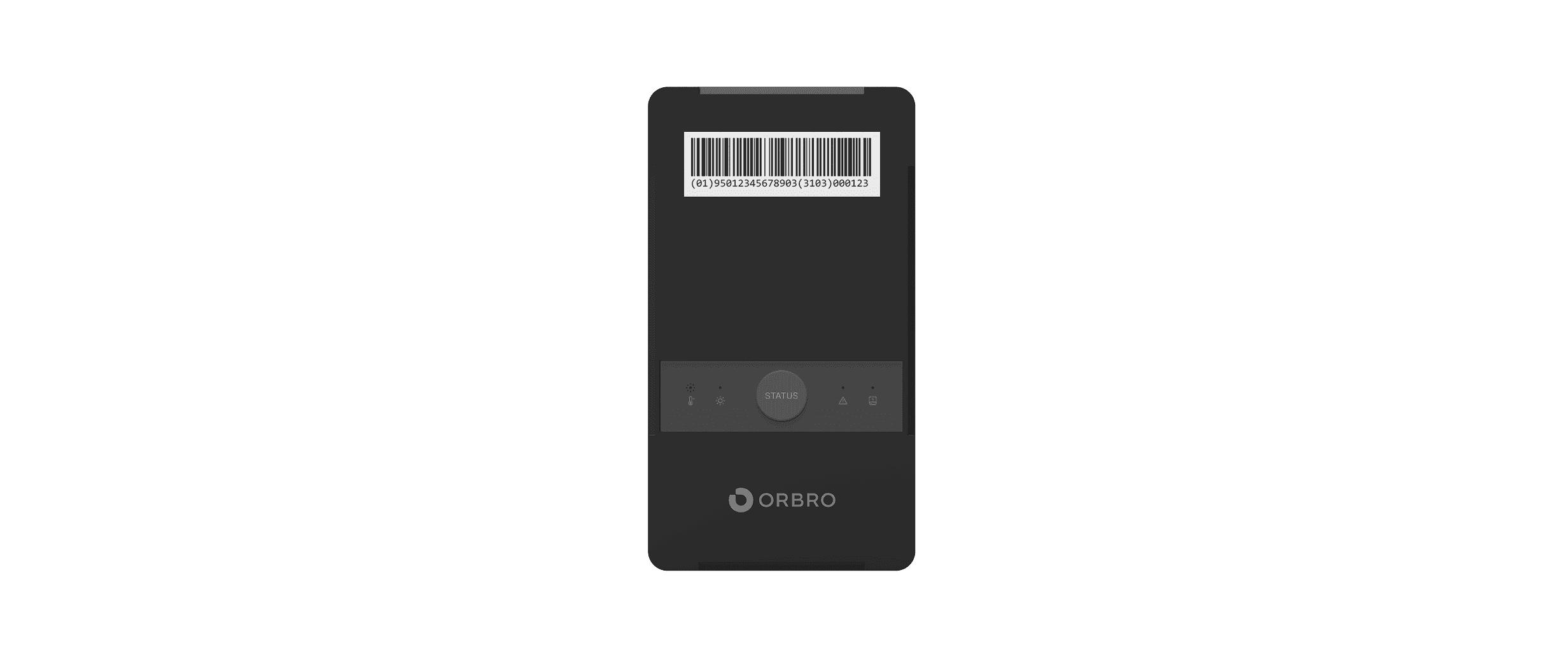

GPS Device
GD-P0100
价格另询
GPS Device
GD-P0100
价格另询
GPS Device是一种可在户外环境中使用的定位专用设备，可以根据GPS信号实时确定客体的位置。 采用小巧轻便设计，可附着在车辆、资产、人员等多种对象上使用，与ORBROOS联动，提供野外定位监测功能。 GPS设备与ORBRO Server一起使用，是实施室内外一体化定位环境必不可少的输入设备。
注意事项
本产品为GPS输入专用设备，无法自行执行ORBROOS。 使用基于ORBROOS的应用（AIRTLS、Zone Insight、Zone Effect等），需要单独与ORBRO Server或ORBRO Edge设备联动。 ※ GPS设备负责采集位置数据，在服务器/边缘设备上进行运算和分析。
附加服务
ORBRO Care
提供 3 年内免费维修及 1:1 换新保障。
价格另询
价格另询
1
产品
产品规格
GPS Device
GD-P0100
概览
The ORBRO GPS Device is a compact GNSS tracker designed for real-time outdoor asset and vehicle monitoring.
Equipped with a high-precision GNSS chipset and LTE-M (Cat-M1)/NB-IoT connectivity, it ensures reliable data collection even in remote environments and integrates seamlessly with ORBRO OS.
It is ideal for fleet management, logistics asset tracking, and construction site monitoring.
Form Factor: Portable enclosure
Weight: 200g
性能
Positioning Accuracy: Supports GPS, GLONASS, BeiDou; average accuracy ±3m
Update Rate: Configurable reporting interval (up to 10 times/min, as low as every 6s)
Data Upload: LTE-M or BLE for seamless server/cloud integration
Power Optimization: Motion-based reporting and sleep modes extend battery life
硬件
GNSS Receiver: Multi-constellation (GPS, GLONASS, BeiDou)
Cellular Module: LTE-M (Cat-M1) + NB-IoT
Antenna: High-sensitivity built-in antenna for stable satellite reception
Battery: Rechargeable Li-ion, up to 150 days in power-saving mode
Interface: USB Type-C (charging and data connection)
Indicators: LED for GNSS fix and battery status
