GPS Device
GD-P0100
별도문의






GPS Device
GD-P0100
별도문의
GPS Device는 야외 환경에서 사용할 수 있는 위치 추적 전용 장치로, GPS 신호를 기반으로 객체의 위치를 실시간으로 확인할 수 있습니다. 소형·경량 설계로 차량, 자산, 인력 등 다양한 대상에 부착하여 활용할 수 있으며, ORBRO OS와 연동하여 야외 위치 추적 및 모니터링 기능을 제공합니다. GPS Device는 ORBRO Server 와 함께 사용되어, 실내·외 통합 위치 추적 환경을 구현하는 데 필수적인 입력 장치 역할을 수행합니다.
참고사항
본 제품은 GPS 입력 전용 장치로, 자체적으로 ORBRO OS를 실행할 수 없습니다. ORBRO OS 기반 애플리케이션(AI RTLS, Zone Insight, Zone Effect 등)을 사용하기 위해서는 별도의 ORBRO Server 또는 ORBRO Edge 장치와의 연동이 필요합니다. ※ GPS Device는 위치 데이터를 수집하는 역할을 담당하며, 연산 및 분석은 서버/엣지 장치에서 수행됩니다.
부가 서비스
ORBRO Care
3년 이내 무상수리·1:1 교환 보장
₩60,000/개
별도문의
1
제품
제품 사양



GPS Device
GD-P0100
Overview

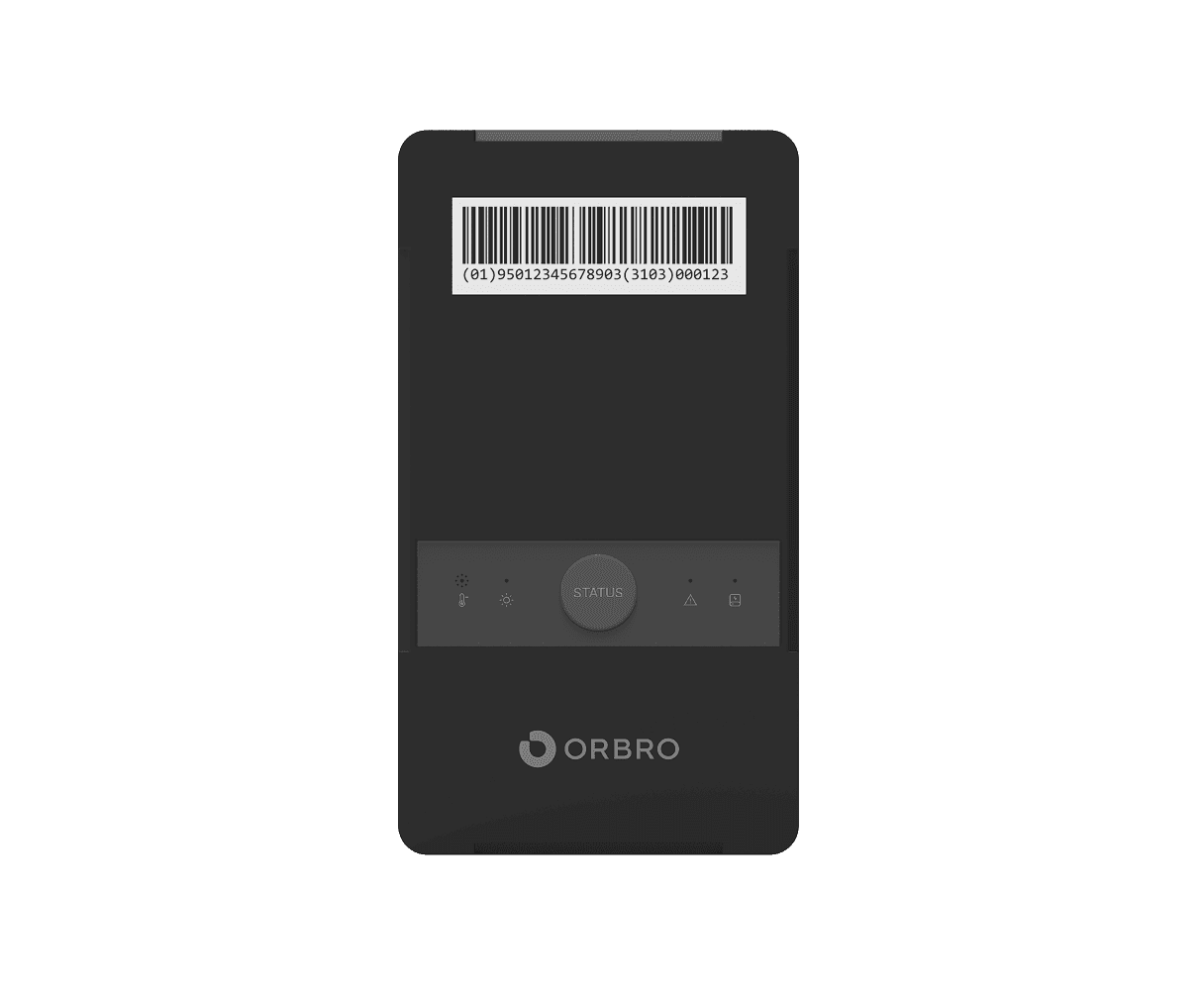

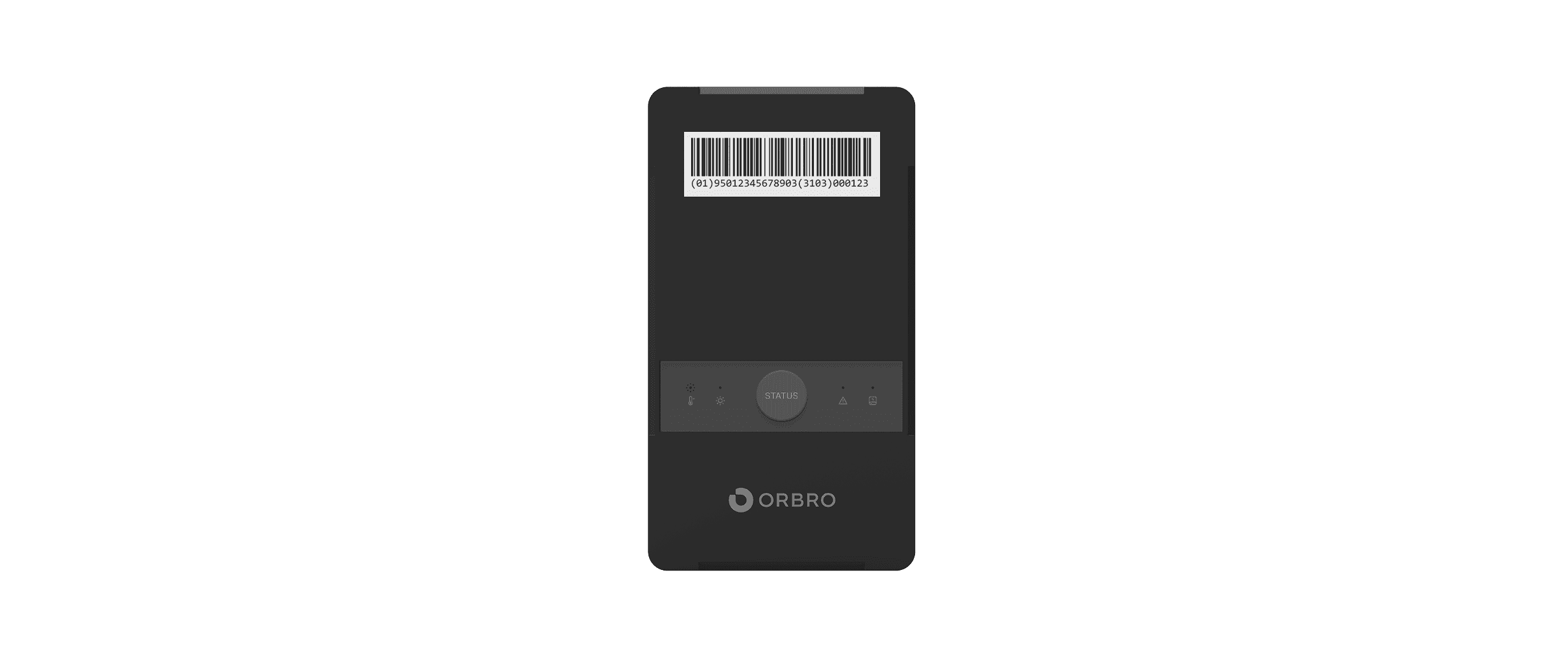

The ORBRO GPS Device is a compact GNSS tracker designed for real-time outdoor asset and vehicle monitoring.
Equipped with a high-precision GNSS chipset and LTE-M (Cat-M1)/NB-IoT connectivity, it ensures reliable data collection even in remote environments and integrates seamlessly with ORBRO OS.
It is ideal for fleet management, logistics asset tracking, and construction site monitoring.
Form Factor: Portable enclosure
Weight: 200g
Performance
Positioning Accuracy: Supports GPS, GLONASS, BeiDou; average accuracy ±3m
Update Rate: Configurable reporting interval (up to 10 times/min, as low as every 6s)
Data Upload: LTE-M or BLE for seamless server/cloud integration
Power Optimization: Motion-based reporting and sleep modes extend battery life
Hardware
GNSS Receiver: Multi-constellation (GPS, GLONASS, BeiDou)
Cellular Module: LTE-M (Cat-M1) + NB-IoT
Antenna: High-sensitivity built-in antenna for stable satellite reception
Battery: Rechargeable Li-ion, up to 150 days in power-saving mode
Interface: USB Type-C (charging and data connection)
Indicators: LED for GNSS fix and battery status
