B5 Badge
RM-PBA05
별도문의








B5 Badge
RM-PBA05
별도문의
B5 Badge는 듀얼 버튼 구조와 RFID 기능을 갖춘 Bluetooth Low Energy(BLE) 배지형 태그로, 직원 ID 카드와 비상 호출 장치를 하나로 통합할 수 있는 제품입니다. 전면 SOS 버튼과 후면 버튼을 통해 서로 다른 알림을 전송할 수 있으며, 진동 모터와 부저, 다색 LED 인디케이터를 통해 호출 상태와 연결 상태를 직관적으로 확인할 수 있습니다.
참고사항
B5 Badge는 듀얼 버튼 구조와 RFID 기능을 갖춘 Bluetooth Low Energy(BLE) 배지형 태그로, 직원 ID 카드와 비상 호출 장치를 하나로 통합할 수 있는 제품입니다. 전면 SOS 버튼과 후면 버튼을 통해 서로 다른 알림을 전송할 수 있으며, 진동 모터와 부저, 다색 LED 인디케이터를 통해 호출 상태와 연결 상태를 직관적으로 확인할 수 있습니다.
부가 서비스
ORBRO Care
3년 이내 무상수리·1:1 교환 보장
₩6,000/개
별도문의
1
제품
제품 사양

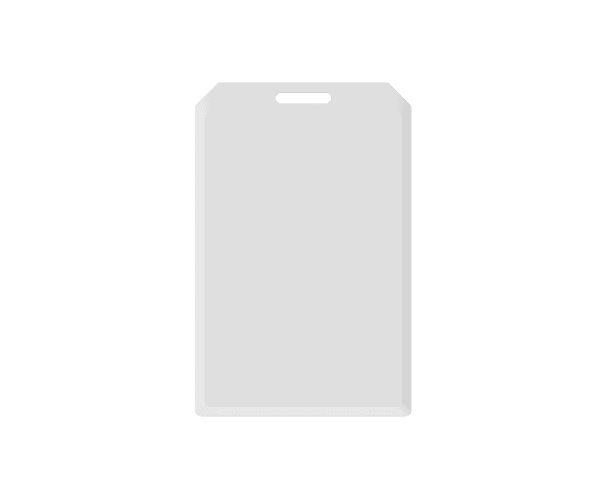

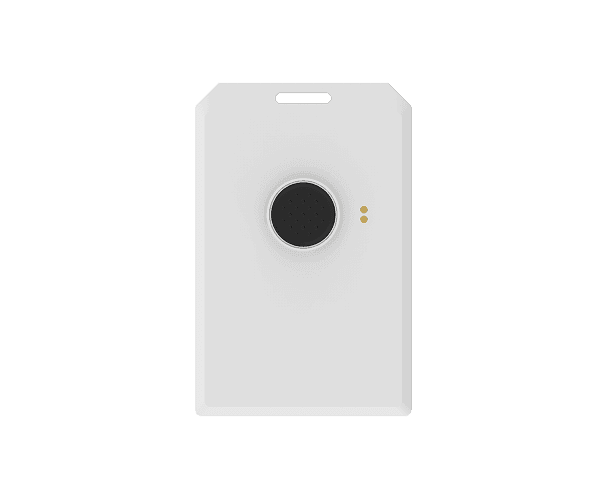

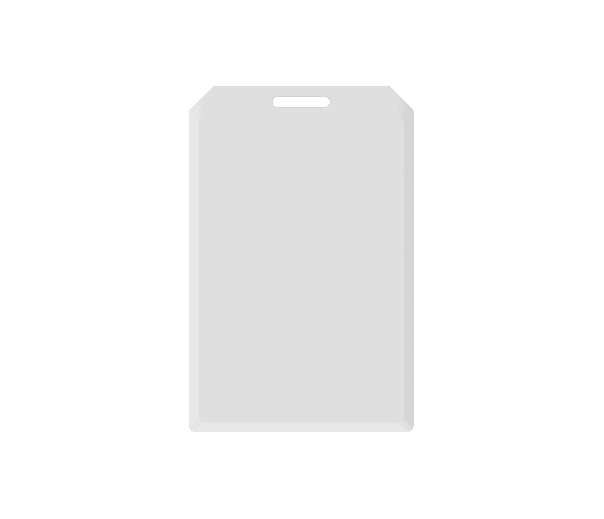

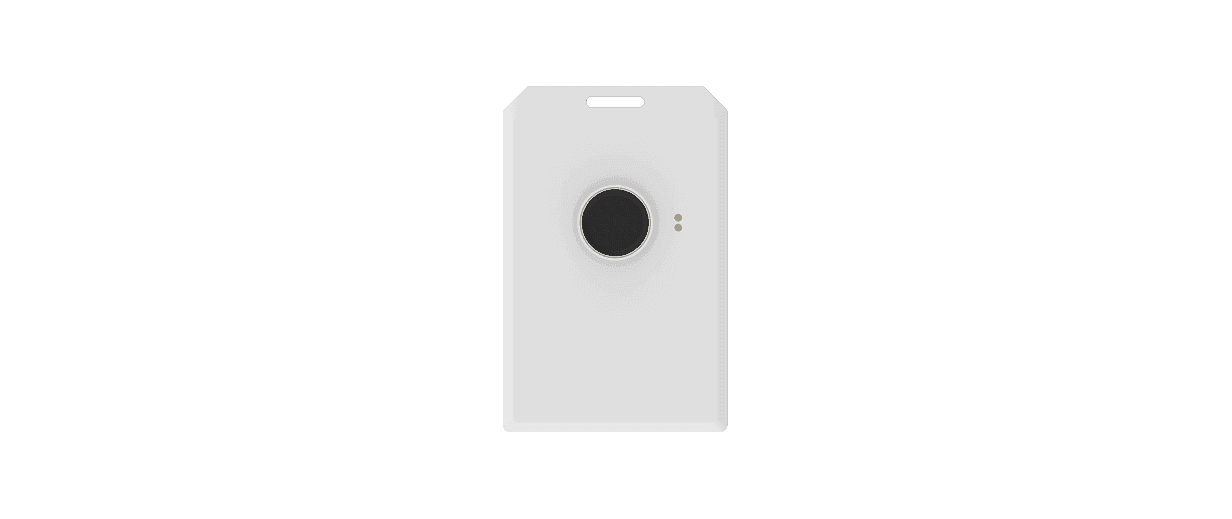

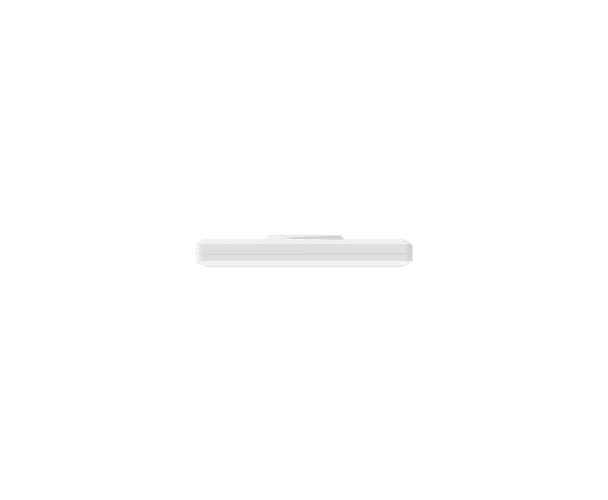

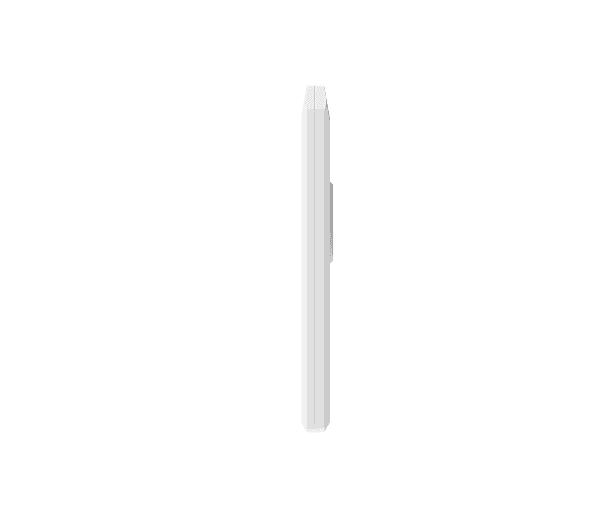

제품 외형



B5 Badge
RM-PBA05
Overview
Dimensions: 91.0mm × 59.0mm × 7.5mm
Form Factor: Rechargeable dual-button BLE badge
• Material: PC + TPU, IP66-rated enclosure
Application: Staff ID, SOS alert, access control and attendance management in hotels, schools and hospitals
Performance
Bluetooth® Low Energy (BLE) 5.0 communication
Maximum Tx power: +4 dBm
Transmission range up to 150 m in open area, line-of-sight conditions
Estimated lifetime up to 18 months in advertising mode and 17 months in long connection mode under default settings*
Designed for robust operation in indoor industrial and commercial environments with IP66 dust and water protection
Operating temperature: -20°C to +60°C
Hardware
Operating temperature: -20°C to +60°C
Sensors: 3-axis accelerometer for motion and event detection
LED: 3 × monochromatic LEDs (Red, Green, Blue) for power, charging, connection and alert indication
Buzzer: Diaphragm buzzer (up to 85 dB)
Vibration Motor: Built-in vibration motor for haptic feedback
Battery: 350 mAh rechargeable battery
Charging: Magnetic charging interface, typical charging time about 3 hours at 25°C with temperature protection (high-temp cutoff around 45°C, low-temp cutoff around 0°C)
Installation: Lanyard mounting for badge-style wearing
Ingress Protection: IP66 dust and water resistance
Regulatory Certifications: FCC, CE, RoHS, REACH
