W7 Medical Wristband
RM-PWA07
별도문의








W7 Medical Wristband
RM-PWA07
별도문의
W7 Medical Wristband는 Bluetooth Low Energy(BLE) 5.0을 기반으로 한 의료용 일회용 손목밴드 태그입니다. 인식용 태그와 환자 밴드를 하나로 통합한 제품으로, 병원·요양시설·격리 병동 등에서 환자 식별과 위치 추적, 안전 관리에 활용할 수 있도록 설계되었습니다. 단 한 번만 체결 가능한 안티-리무벌(anti-removal) 스트랩 구조를 적용해, 밴드가 임의로 풀리거나 교체되는 상황을 최소화하고 관리 신뢰성을 높여 줍니다.
참고사항
본 제품은 단독으로 ORBRO OS를 실행하거나 RTLS/환자 관리 시스템을 구성할 수 없습니다. W7 Medical Wristband는 ORBRO Edge 및 호환 BLE 게이트웨이(예: TwinTracker BLE)와 함께 사용할 때, 병원·케어 시설에서 환자 식별, 위치 추적, 밴드 절단 알림까지 통합된 안전 관리 환경을 구현할 수 있습니다.
부가 서비스
ORBRO Care
3년 이내 무상수리·1:1 교환 보장
₩6,000/개
별도문의
1
제품
제품 사양

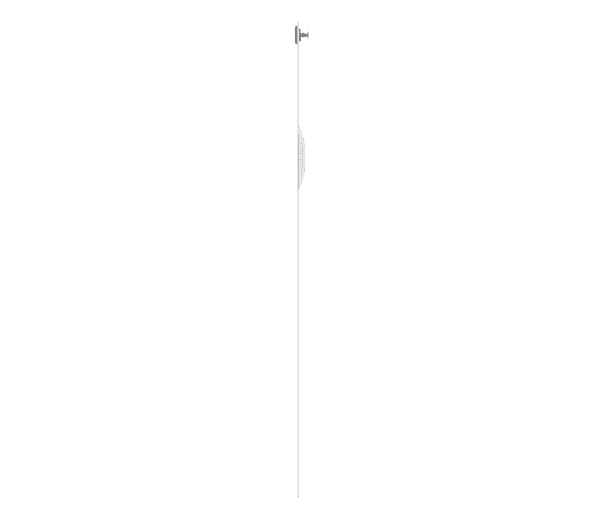

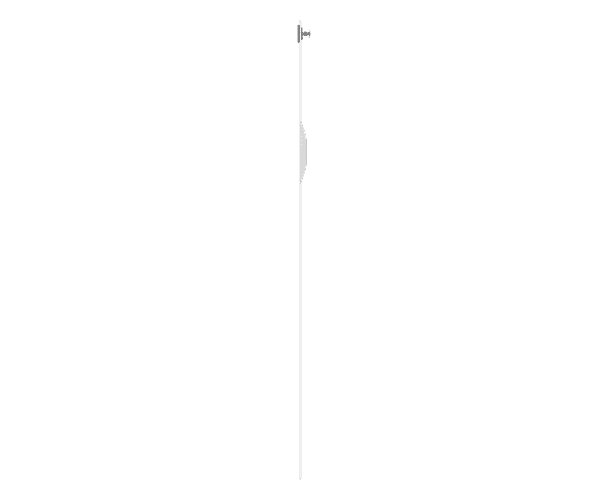

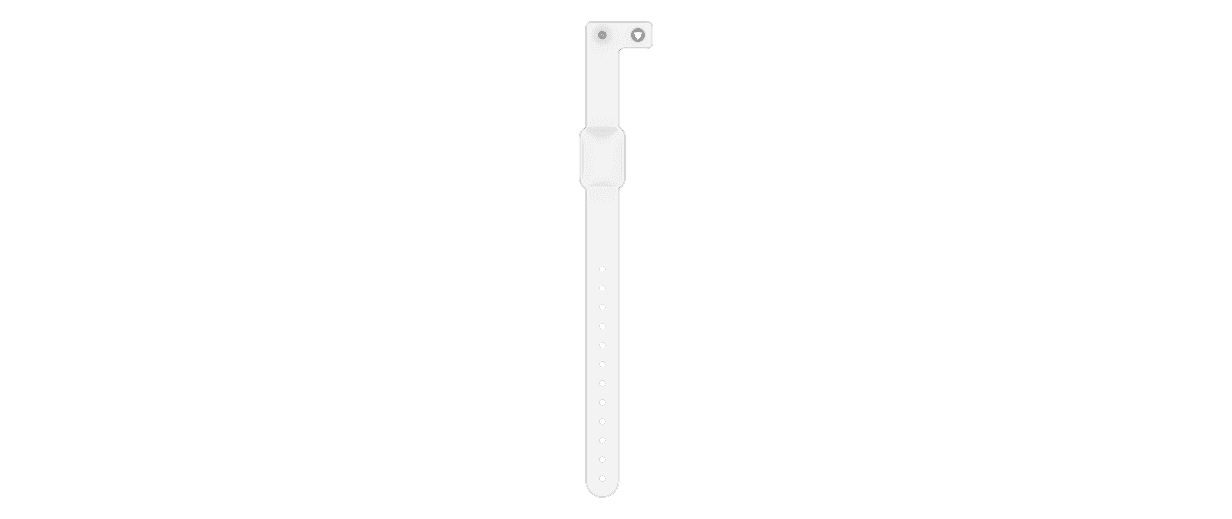

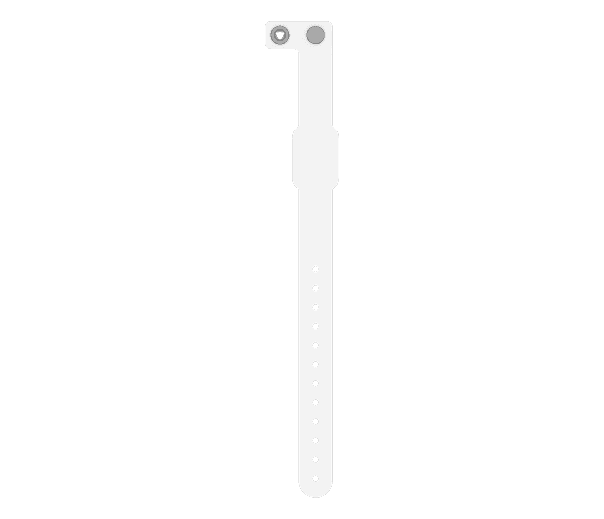

제품 외형



W7 Medical Wristband
RM-PWA07
Overview
Dimensions:
Tag (PCBA) area: 32.4mm × 24.5mm × 4.5mm
Strap length: 250mm (adult), 205mm (kids), 160mm (infant); width 24.5mm, thickness 4.5mm
Form Factor: Single-use medical BLE wristband with integrated NFC and anti-removal strap
Material: TPU strap, white color, IP67 waterproof and dustproof
Application: Patient identification, presence tracking and cut-off alerting in hospitals and healthcare facilities
Performance
Wireless Technology: Bluetooth® Low Energy (BLE) 5.0
Maximum Tx Power: +4 dBm
Transmission Range*: up to 150 m in open-space, line-of-sight conditions
Typical Battery Lifespan (default settings): about 5 months
Default configuration: 0 dBm Tx power, 3000 ms advertising interval, continuous broadcast
Battery Consumption Examples (approx.):
1000 ms / 0 dBm: ~70 days
3000 ms / 0 dBm: ~150 days (default)
5000 ms / 0 dBm: ~190 days
10000 ms / 0 dBm: ~240 days
Operating Temperature: −25°C to +55°C
Hardware
IP Rating: IP67
Bluetooth LE 5.0
NFC: 13.56 MHz, ISO/IEC 14443-A compliant
LED: Red LED for all status indications
Power: Battery Capacity: 38 mAh
Cut-off detection: when the wristband is cut, the tag sends an alarm broadcast, with cut-off status indicated in Bit 3 of the “switch status indicator” byte in the Device Info advertising frame
NFC-based power control and factory reset (no physical power button)
Designed to comply with major radio and safety regulations (e.g., FCC, CE, RoHS – exact list per region on request)
