M4 Pro Asset Tag
RM-PMP04
별도문의








M4 Pro Asset Tag
RM-PMP04
별도문의
M4 Pro Asset Tag(M4P)는 M4의 콤팩트한 폼팩터는 유지하면서, IP67 방수·방진을 지원하도록 강화된 산업용 자산 추적 태그입니다. 42.0×26.0×6.0mm의 견고한 나일론(Nylon) 하우징을 사용하여, 물·먼지·충격이 많은 물류 야드, 실외 적치장, 공장 설비 주변 등 거친 환경에서도 안정적으로 사용할 수 있습니다.
참고사항
M4 Pro Asset Tag(M4P)는 M4의 콤팩트한 폼팩터는 유지하면서, IP67 방수·방진을 지원하도록 강화된 산업용 자산 추적 태그입니다. 42.0×26.0×6.0mm의 견고한 나일론(Nylon) 하우징을 사용하여, 물·먼지·충격이 많은 물류 야드, 실외 적치장, 공장 설비 주변 등 거친 환경에서도 안정적으로 사용할 수 있습니다.
부가 서비스
ORBRO Care
3년 이내 무상수리·1:1 교환 보장
₩6,000/개
별도문의
1
제품
제품 사양

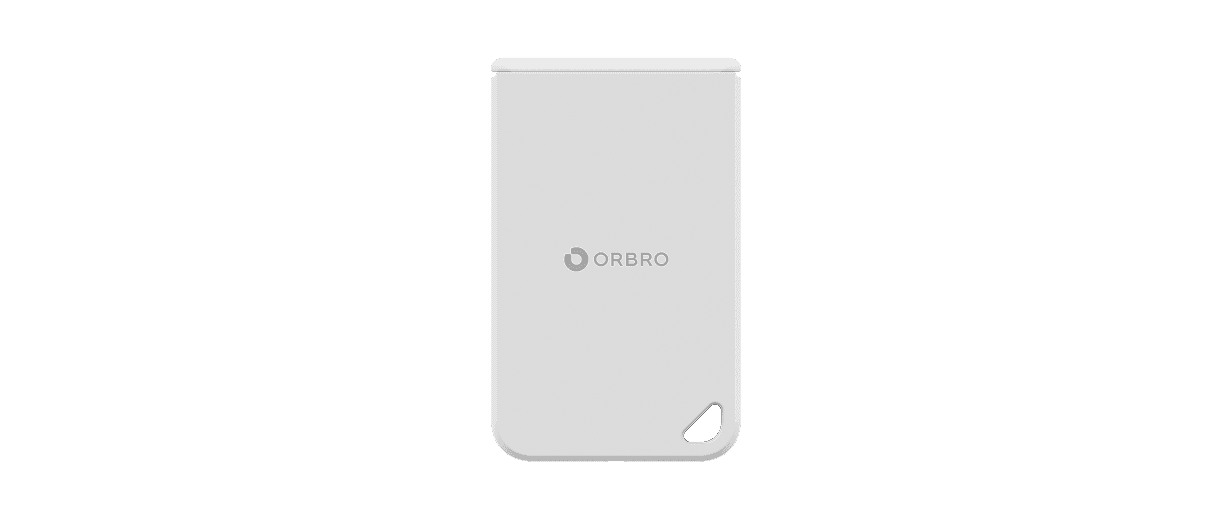

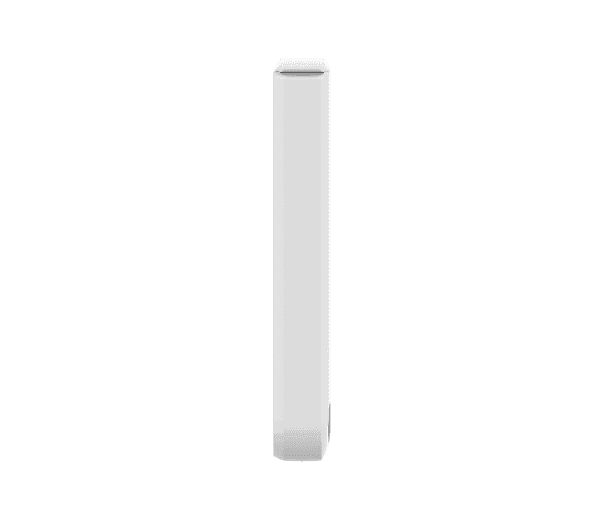

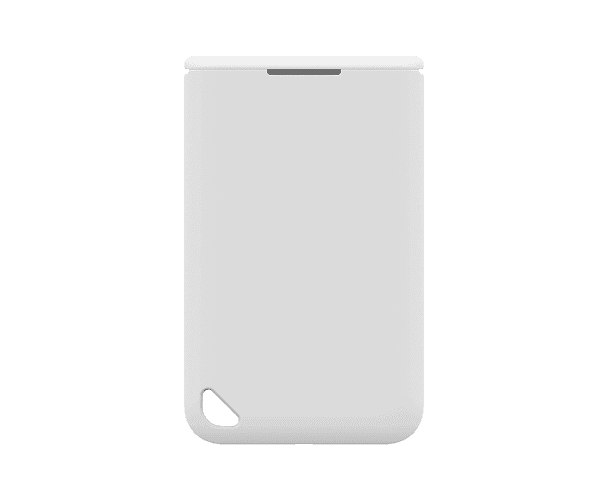

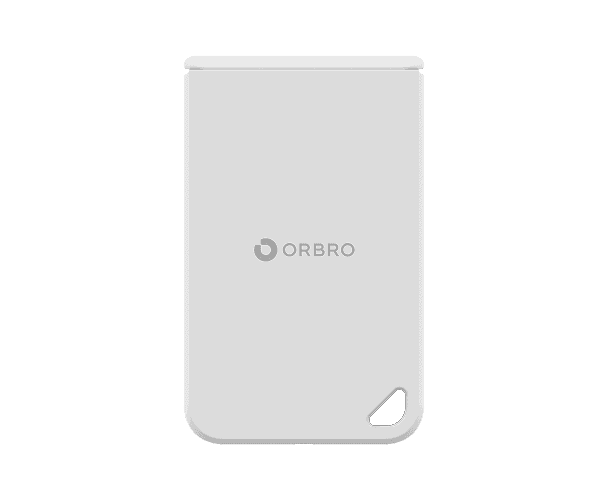

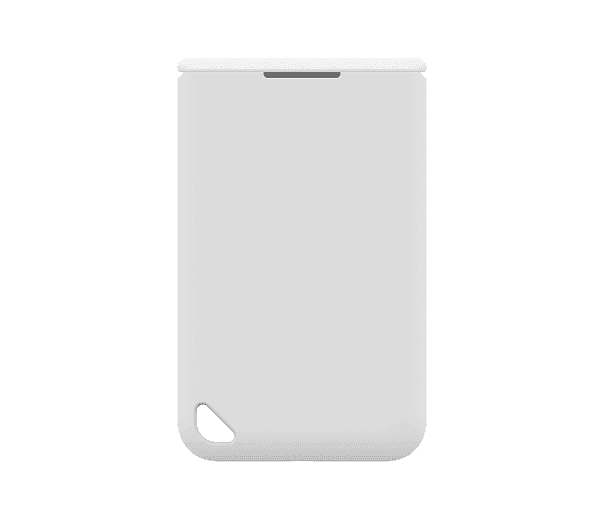

제품 외형



M4 Pro Asset Tag
RM-PMP04
Overview
Dimensions: 42.0mm × 26.0mm × 6.0mm
Form Factor: Rugged, IP67 BLE asset tag for industrial tracking
• Material: Nylon enclosure, white, IP67-rated
Application: Asset and equipment tracking in harsh or outdoor-prone industrial and logistics environments
Performance
Wireless Technology: Bluetooth® Low Energy (BLE) 5.1
Maximum Tx Power: +6 dBm
Long Range Mode: Supported (BLE 5.0 Coded PHY)
Transmission Range*:
Up to 150 m (legacy mode)
Up to 350 m (long range mode)
Operating Temperature: -20°C to +60°C
Ingress Protection: IP67 dust and water resistance
Regulatory Certifications: FCC, CE, RoHS, REACH
Hardware
Enclosure: Nylon housing, IP67 waterproof, white color
Mounting Options: 3M tape or zip tie slots
MCU: Silicon Labs MCU
Sensors: Accelerometer sensor (motion detection), no temperature sensor
Temperature Logger / External Memory: Not supported
LED: Red LED for power, connection, DFU and notification status
Battery Capacity: 220 mAh
Battery Type: Replaceable primary battery
Ingress Protection: IP67 dust and water resistance
Regulatory: FCC, CE, RoHS, REACH
