Repeated RTLS Entry Alerts? Start with the Zone Boundary

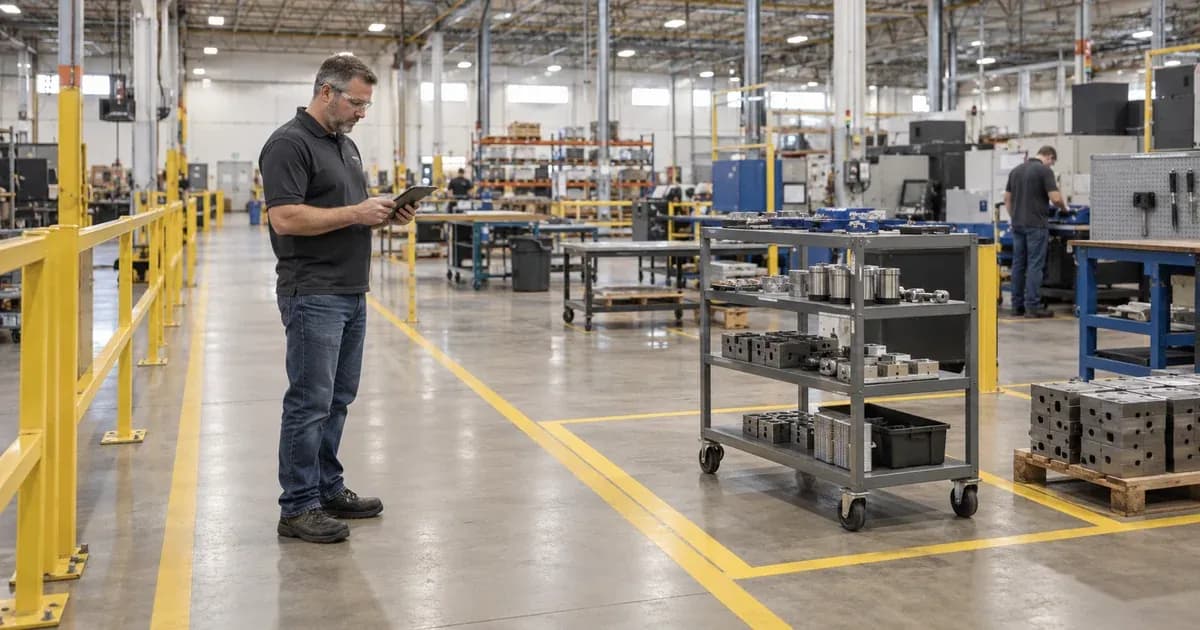

A parts cart remains parked in its material bay, yet the control screen reports several entries. The operator saw one movement. The event list suggests several. Reducing notification volume may make the screen quieter without resolving the disagreement.

For a US manufacturing facility, begin with the decision the alert supports. A cart arriving for inspection, a cart passing a buffer and a cart entering storage do not represent the same task. This article concerns operational asset alerts. Machine protection and safety control require their own validated design.

I. Decide what crossing the boundary means

The painted line describes a physical bay. RTLS observes the tag attached to the cart. A tag on the rear handle may remain outside after the cart's front crosses the line. Establish whether the rule concerns the tag, the cart center or full entry, and explain any difference to operators.

Compare floor markings with map scale, rotation and zone coordinates. In a Midwestern plant, a bay beside a broad pedestrian aisle offers a useful test setting, but each facility needs its actual layout checked. Record nearby steel racks, load height and tag orientation rather than assuming all boundary errors share one cause.

Observed symptom	Evidence to compare	First investigation
A parked cart produces repeated entries	Coordinates, observation times and zone classifications	Boundary definition and reception
One event produces several notifications	Event identifier and delivery records	Event creation and delivery
The cart leaves and returns	Physical movement and entry–exit sequence	Rules for a genuine new arrival

The same-looking notification can require a different remedy. Removing duplicate deliveries will not correct unstable zone classification. First connect each record to a confirmed physical movement, then decide which stage needs changing.

II. Separate repeated observations from repeated events

Collect the asset identifier, observation timestamp, receipt timestamp, zone and active rule for each alert. Duplicate delivery, a position oscillating across the boundary and a genuine exit followed by re-entry need different fixes. Similar receipt times alone do not prove that records describe one movement.

Test a stationary cart, travel parallel to the line and a complete crossing. If observations are missing, retain an unconfirmed interval. Check how late records are handled; an old position should not silently become evidence of a fresh entry. Trace whether duplication begins in location classification, event creation or notification delivery.

III. Review targets before adding filters

ORBRO RTLS supports zone-oriented location management. Confirm the alert options exposed by the selected application and release. A category containing empty carts, loaded carts and test tags may be broader than the intended workflow. Begin with the assets the receiving operator can actually act on.

A sustained-entry requirement or separate entry and exit boundaries can be considered where the implementation supports them. These are design options to verify, not assumed defaults. Any delay added to suppress unstable observations must remain compatible with the operating task. Document the tradeoff between fewer unnecessary alerts and later recognition of real arrivals.

IV. Test both arrivals and ordinary traffic

Include stopping outside, passing alongside the bay, partial entry, full entry and leaving again. Repeat with representative loads and tag orientations. Test during a busy operating period as well as a quiet one. Link the physical observer's notes to the resulting event records.

Define the reference movements before calculating results. Check missed arrivals, unwanted alerts and time to useful notification against that reference. Fewer notifications are not an improvement if required arrivals disappear. Keep unverifiable movements separate instead of counting them as successes. Findings from one bay should not automatically qualify every zone.

V. Make the rule understandable across shifts

Retain the changed boundary, target group, effective time, test route and responsible person. Use a zone name that tells an operator where to go. The follow-up record should distinguish a real arrival, ordinary passing traffic, unstable observations, configuration error and an unresolved case.

VI. Accept a boundary change with its neighboring area

For the hypothetical US parts bay, compare a cart passing along the line with another parked fully inside. Write their expected outcomes before adjusting the rule. Repeat both after the change: the passing cart should retain its agreed treatment, and the arrival that requires action must remain visible.

ORBRO RTLS Manager supports map preparation using reference points, rotation and scale. Check those spatial settings separately from event-rule changes. If the polygon expands, inspect the adjacent staging area for newly included assets. Preserve the previous boundary, the effective time and the condition for reversing the change. Operators also need the revised zone name and a clear description of the arrival they are expected to confirm.

Closing thoughts

A stationary cart producing repeated entry alerts calls for a comparison of physical movement, tag position and the stage creating the event. Validate genuine arrivals and ordinary traffic together. A useful improvement reduces unnecessary work while preserving the arrivals that receiving staff must act on; notification count alone cannot establish that result.

Repeated issues at one bay suggest a local layout or reception check; simultaneous issues across several bays warrant inspection of the common data path. Expanding a polygon can also include another staging area, so compare the population counted before and after a change. Bring the layout and a sample of confirmed movements to ORBRO to review the configuration and acceptance criteria.
